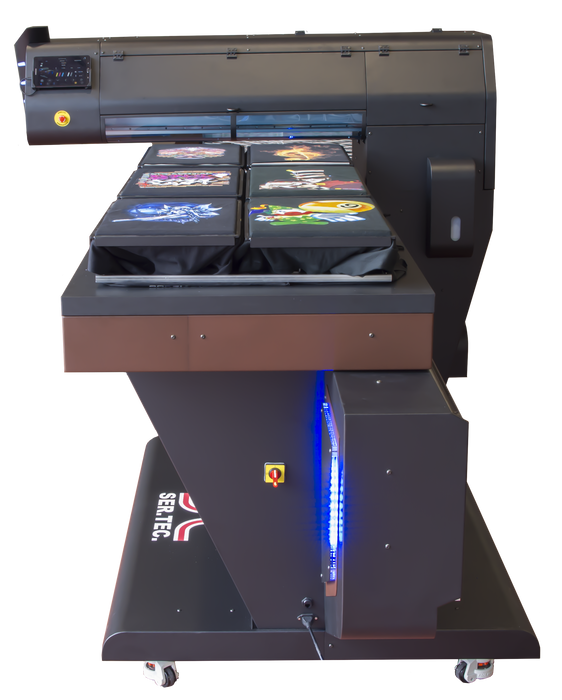

Sertec Eagle TX 70
The Eagle TX series is perfect for printing every item of clothing and is made up of several models, Eagle TX 70 and Eagle TX 130 which are different for the print width, and the new Eagle TX S series, which allows a greater production thanks to the possibility of mounting from 2 to 4 configurable heads. Finally, for the large format, the Eagle TX XL, with the possibility of a print table with a customizable length that allows you to print an even wider surface.
Thanks to Ser. Tec's Multihead technology Eagle TX 70 can be equipped with two printheads, drastically increasing the printer output.
Like the other Eagle printers, Eagle TX is provided with a white recirculation system with pressured colours, height sensors, and brushless engines with encoder sensors.
The supplied equipment includes the WhiteRIP dedicated software, with specific functions, realized purposely for Textile Printing.

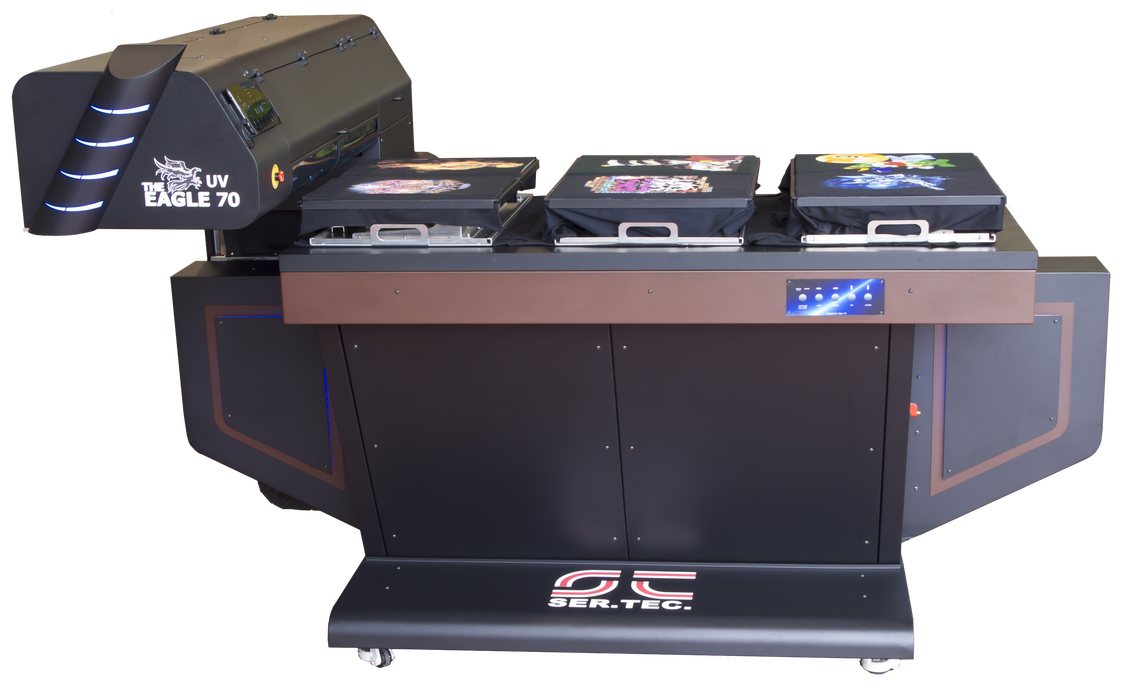

Remote printer management via tablet allows you to view printer status and perform management operations even without being physically close to the printer. Moreover, thanks to its wing design, Eagle TX 130 allows continuous work without interruptions, ie it is possible to load and unload the boards on one side while the printer works on the opposite one.
Material Thickness up to 250mm
New Generation Printheads
The optional double print head
Thanks to the proprietary multi-head technology it is possible to manage 2 independent printheads, increasing the printing speed without affecting the quality.
Open Ink System (Bulk)
Remote management via tablet
Eagle printers of new generations can be controlled remotely via tablet. This allows the operator to perform the normal management operations and always have the printer status available.
Dedicated software RIP
WhiteRIP is the professional printing software developed by EV Network s.r.l that has a specific function for textile and industrial printing to increase output and reduce preparation time like inline printing and template management.
|Technical details||Eagle TX 70|
|Printing Technology||piezo drop-on-demand, multilevel inkjet technology (3-6 picoliters)|
|Print heads||1 or 2|
|Maximum Printable Area||Width||700 mm (27.56")|
|Maximum Material Thickness||250 mm (9.84")|
|Available color configurations||CMYK CMYK (Double four-color process)
CMYK+W ( four-color process + White )
2xCMYK + 8xWhite (only with double printhead option)
|Power Supply||AC 100 a 240V +-10% 50/60Hz|
|Operating Environment||20-25°C Humidity 35-80% without condensation|
|Included Software RIP||WhiteRIP 7|
