Sertec Eagle TX 130
The Eagle TX series is perfect for printing every item of clothing and is made up of several models, Eagle TX 70 and Eagle TX 130, which are different for the print width, and the new Eagle TX S series, which allows a greater production thanks to the possibility of mounting from 2 to 4 configurable heads. Finally, for the large format, the Eagle TX XL, with the possibility of a print table with a customizable length that allows you to print an even wider surface.
Like the other Eagle printers, Eagle TX is provided with a white recirculation system with pressured colours, height sensors, and brushless engines with encoder sensors.
The supplied equipment includes the WhiteRIP dedicated software, with specific functions, realized purposely for Textile Printing.
Remote printer management
The tablet allows you to view printer status and perform management operations even without being physically close to the printer.

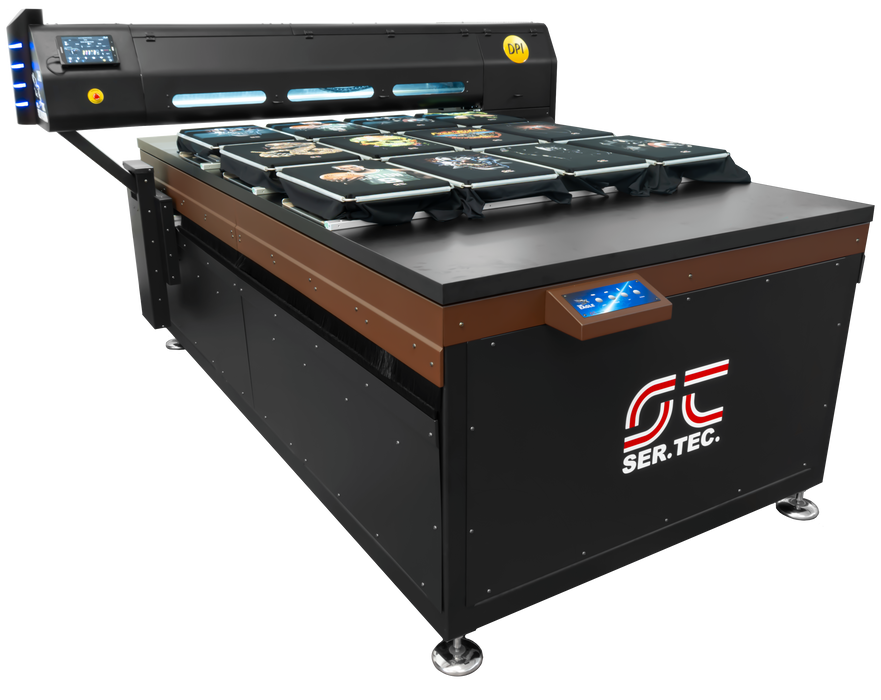

Eagle TX 130 is characterized by a large print area divided into tables of various sizes according to customer requirements, up to 18 A4 platens.
The central platens have been equipped with a sliding system that allows them to be extracted from the machine while the printer is in operation to unload and reload them, eliminating waiting times and cycle stops.
The platens can be easily removed to install an optional 130x150cm printing table in a few minutes to print pre-cut and fabrics in general.
Material Thickness up to 250mm (9")
New Generation Printheads
Optional Double Printheads Configuration
Thanks to the proprietary multi-head technology, it is possible to manage 2 independent printheads, increasing the printing speed without affecting the quality.
Open Ink System (Bulk)
Remote management via tablet
Eagle printers of new generations can be controlled remotely via tablet. This allows the operator to perform the normal management operations and always have the printer status available.
Dedicated software RIP
WhiteRIP is the professional printing software developed by EV Network s.r.l. It has a specific function for textile and industrial printing to increase output and reduce preparation time like inline printing and template management.
|Technical details||Eagle TX 130|
|Printing Technology||piezo drop-on-demand, multilevel inkjet technology (3-6 picoliters)|
|Print heads||1 or 2|
|Maximum Printable Area||Width||1300mm (51.18")|
|Maximum Material Thickness||250 mm (9.84")|
|Available color configurations||CMYK CMYK (Double four-color process)
CMYK+W ( four-color process + White )
2xCMYK + 8xWhite (only with double printhead option)
|Power Supply||AC 100 a 240V +-10% 50/60Hz|
|Operating Environment||20-25°C Humidity 35-80% without condensation|
|Included Software RIP||WhiteRIP 7|
